Sunday 14 March 2010

Tech Specifications II

asimmetrical swingarm, mixed tubular and squared. rims aren't in magnesium, but composite materials



carbon coated exhausts to keep optimized temperature to power, run sensor for the mono on the left high and to the right the rear speed sensor

Saturday 6 February 2010

TECHNICAL SPECS

carbon disks 237 mms , 42 mms front forks ohlins and monobloc Brembo Oro brakes.
digital thermometer cooling fluid.
rev counter and six led gear shift


upper side of carbus, Dell'Orto VHSD 41 on the Biaggi Official machine.


Sunday 3 January 2010

BIAGGI


La moto di Biaggi, che è un universo enorme di tecnologia e ricerca, in origine, nasce da un progetto facente capo a Witteveen su un motore da 400 cc, motore appunto su cui l'ingegnere capo faceva molto affidamento e sviluppato da Loris Reggiani prima, e poi da Romboni in seguito. La base di 400 cc serviva ai tecnici a ottenere un propulsore quanto piu' omogeneo e fruibile in gara. La scelta di Witteveen si basava sulla sua convinzione che un modulo unitario di un monocilindrico da 200cc fosse quanto di piu'simile al comportamento di un 125, motore che la Casa di Noale conosceva ( e conosce ) alla perfezione. Un modulo unitario di 250 cc monocilindrico sarebbe stato un tavolo da laboratorio troppo incongruente su cui sviluppare poi la 250 G.P. successiva. In pratica, l'obiettivo era di mantenere i valori di alesaggio e corsa a 63,2 e 63,7 mm rispettivamente. In realta', quel motore da 400 cc in realta' era qualcosa di piu'...ma facciamo finta che Witteveen allora abbia detto la verita'.... per cui alla fine i veri valori di alesaggio e corsa in realta' oscillavano tra i 68 ( o giu' di li') e i 63 mm, forse di piu' verso il primo valore, e cio' la dice tutta sul sottile equilibrio tra regolamenti e segreti tecnici che regolavano ( e regolano) le competizioni piu' raffinate.
----------------------------------------------------------------------------------------------
The enormous technical heritage of Biaggi's bike was being developed since Witteveen decided to give his faith into the hands of the 400cc engine, tested by Loris Reggiani first, and then by Romboni later. Witteveen was strictly convinced that the unit monocil. 200 cc was perfect to replay the 125 cc engine's behaviour by Aprilia, the golden point of Noale's Mansion and the state of the art as well.
So, he and his collaborators kept well fixed in their mind the target to maintain the measures of bore and stroke at 63,2 and 63,7 mms ca., but we know that it'wasn't for real( probably closer to 68 mms) and the 400 cc engine was just a little bit bigger than this; and that's the reason's why it's very difficult to trace a red line between the technical secrets and the technical rules of these finest races of all.

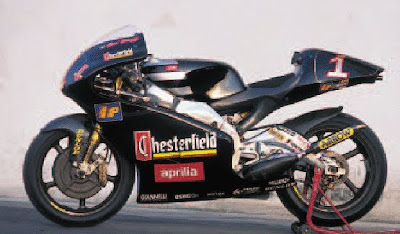

A destra possiamo osservare la moto da gara che nel 1996 ha portato Max Biaggi a vincere il Campionato del mondo 250 cc, a sinistra invece possiamo osservare la RSV Replica 1996, costruita in 25 esemplari. Dalle corse al cliente.
Il codino è spiovente a " goccia" , sui fianchi manca ogni sfogo dell'aria calda del radiatore, per non interferire con la aerodinamicita' del mezzo e della carena stessa. Un espediente gia' provato negli anni precedenti dai tecnici Aprilia. Il bicilindrico è, ovviamente, a V di 90 gradi.

----------------------------------------------------------------------------------------------

On the right, the World Champion bike in 1996 250 G.P., on the left the " Replica RSV " Clienti, 25 samples made. The tail is slope shaped, or drop shaped, and on both sides we see the absolute lack of air intakes, a solution developed by Aprilia engineers until then in 1996. The engine is 90 degrees V2, obviously.

Saturday 12 December 2009

INTRO

Benvenuti in quello che vuole essere un tracciato fedele della moto iridata di Max Biaggi in 250 piu' di 15 anni fa ormai , una delle piu' belle e caratterizzate moto di sempre, creata e messa in pista dal suo creatore, Jan Witteveen.
Buon 2010 a tutti!!
ps
Un sentito ringraziamento a Nicola Padroni per l'aiuto prezioso.
